Grip film - 48.3mm (1"1/2 ) STARTER PIN WITH 100mm (4") WHEELS SET

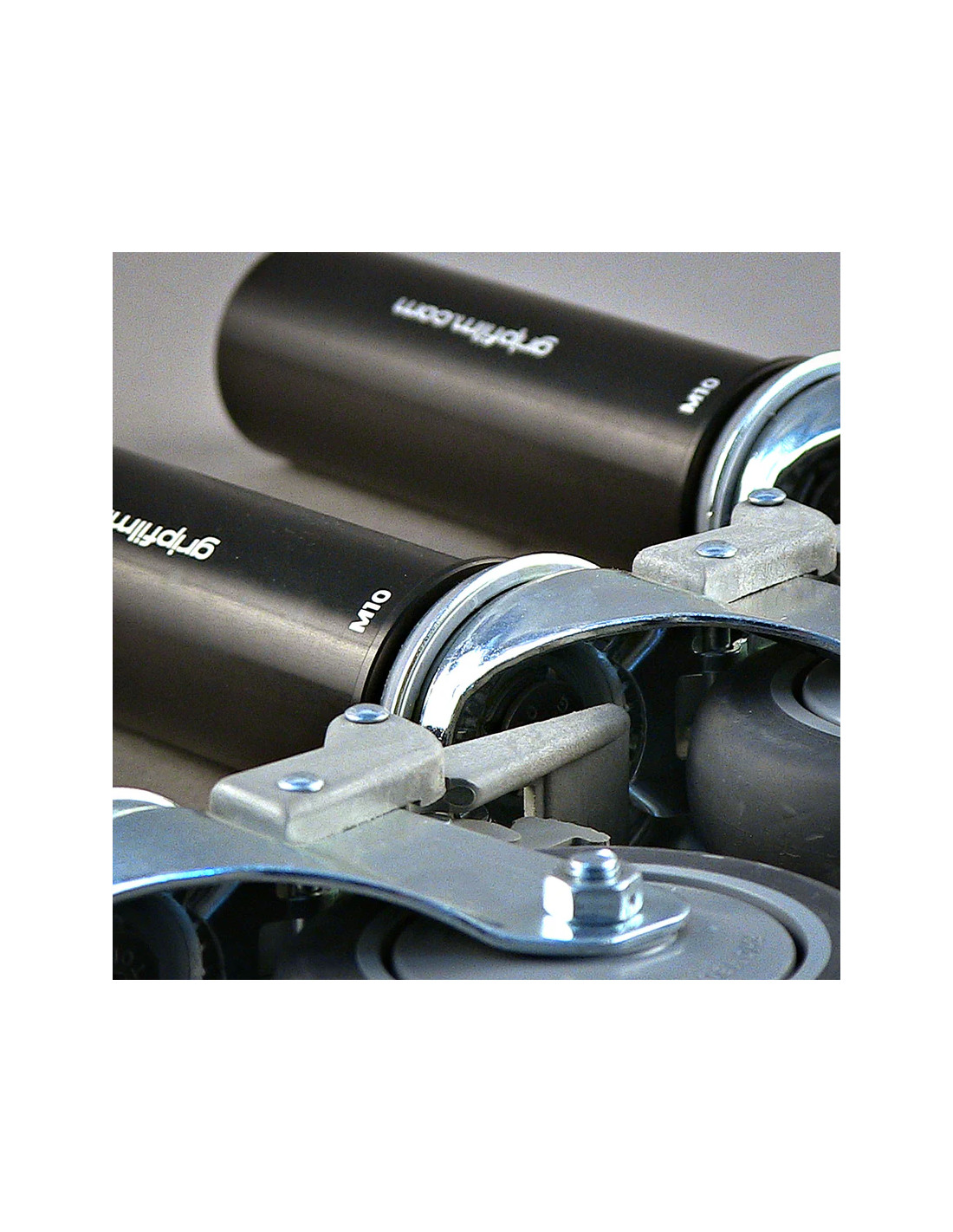

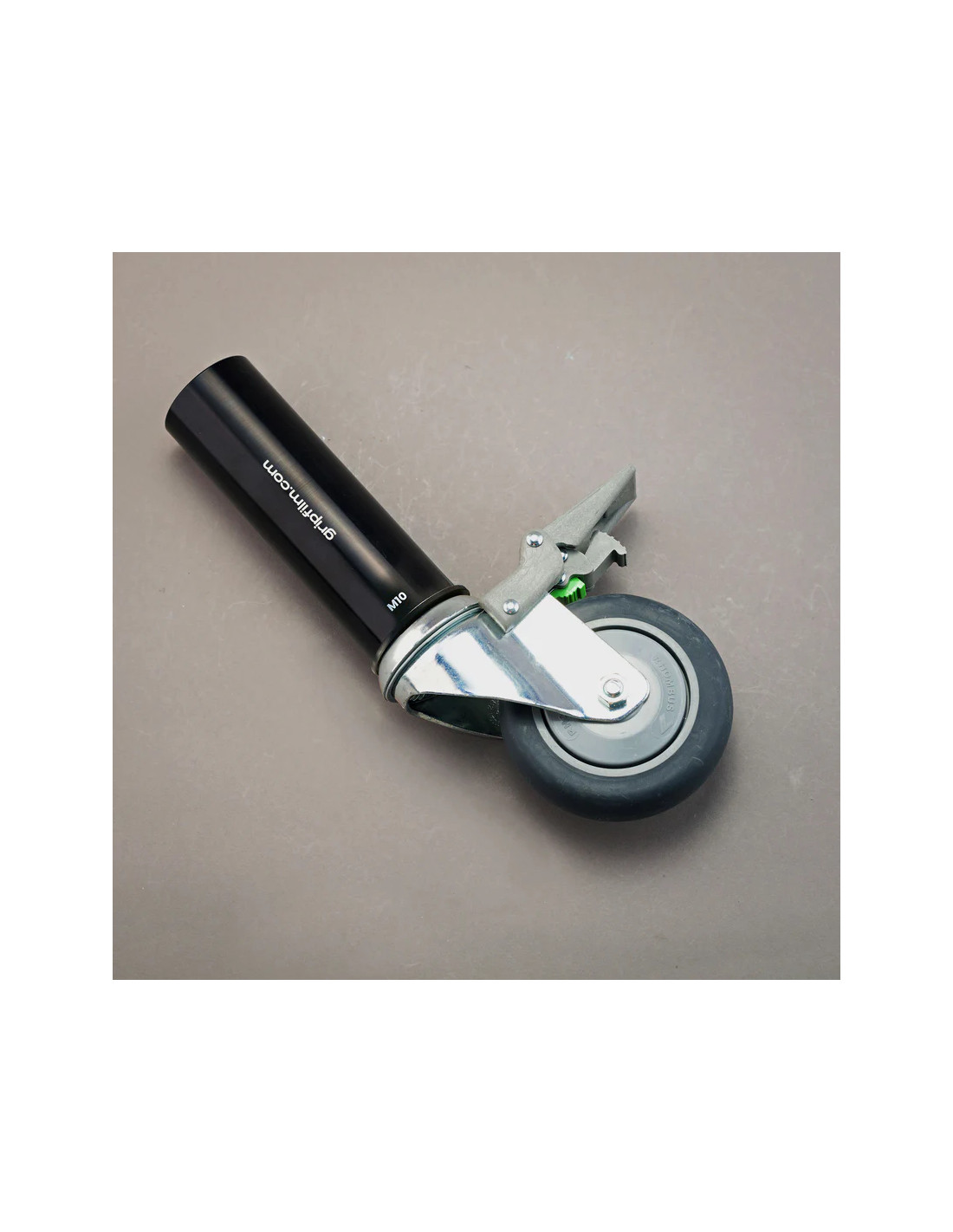

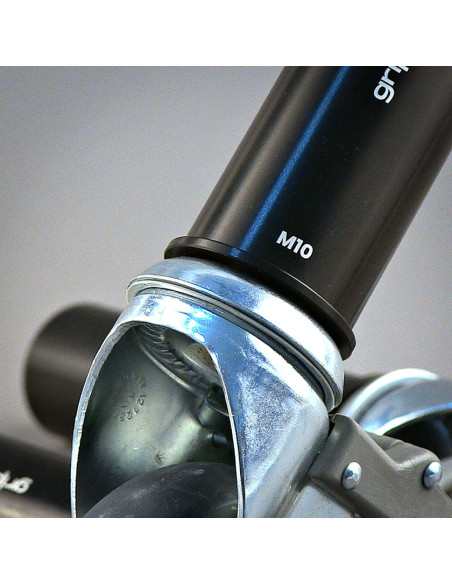

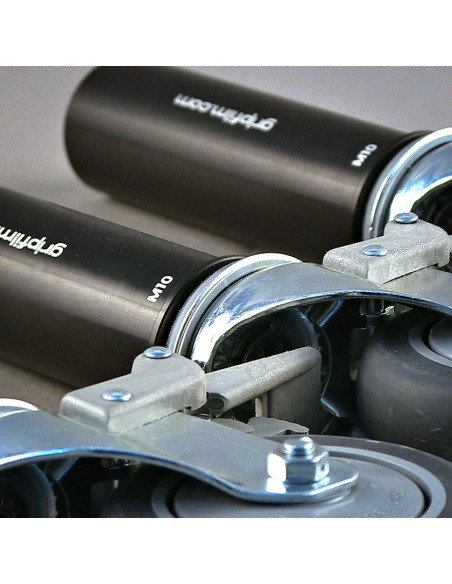

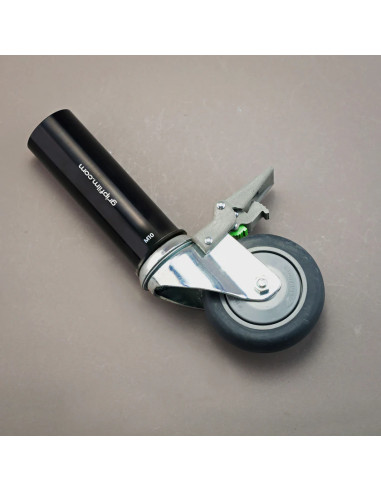

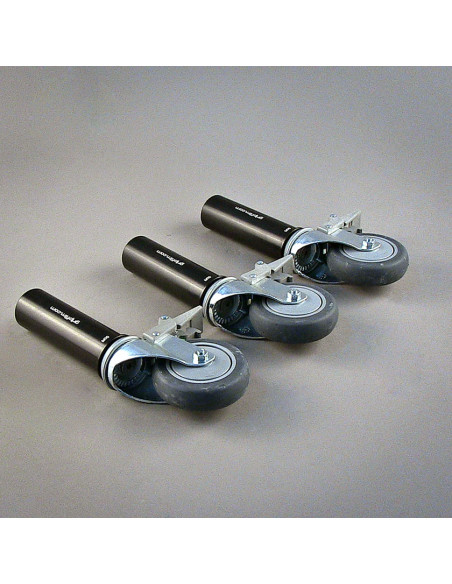

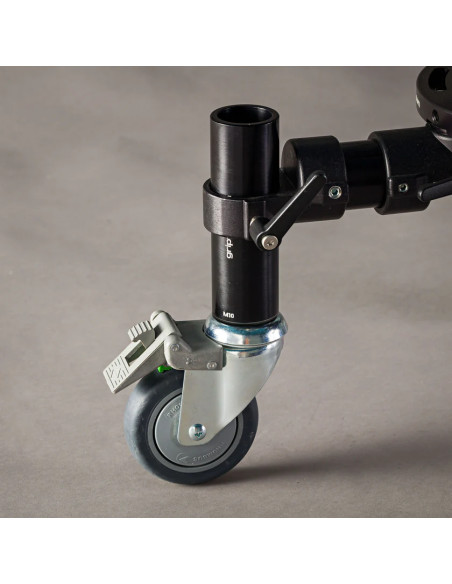

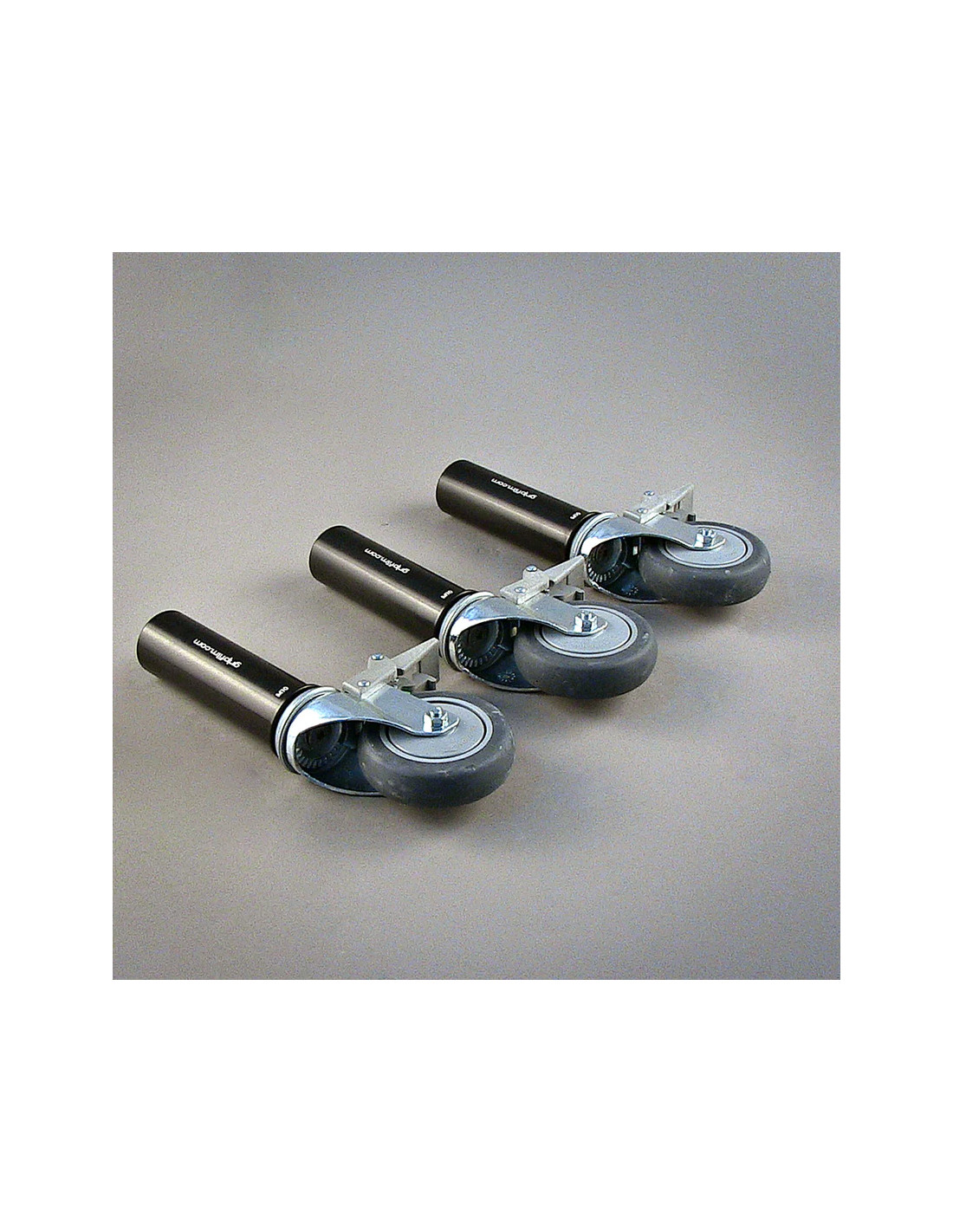

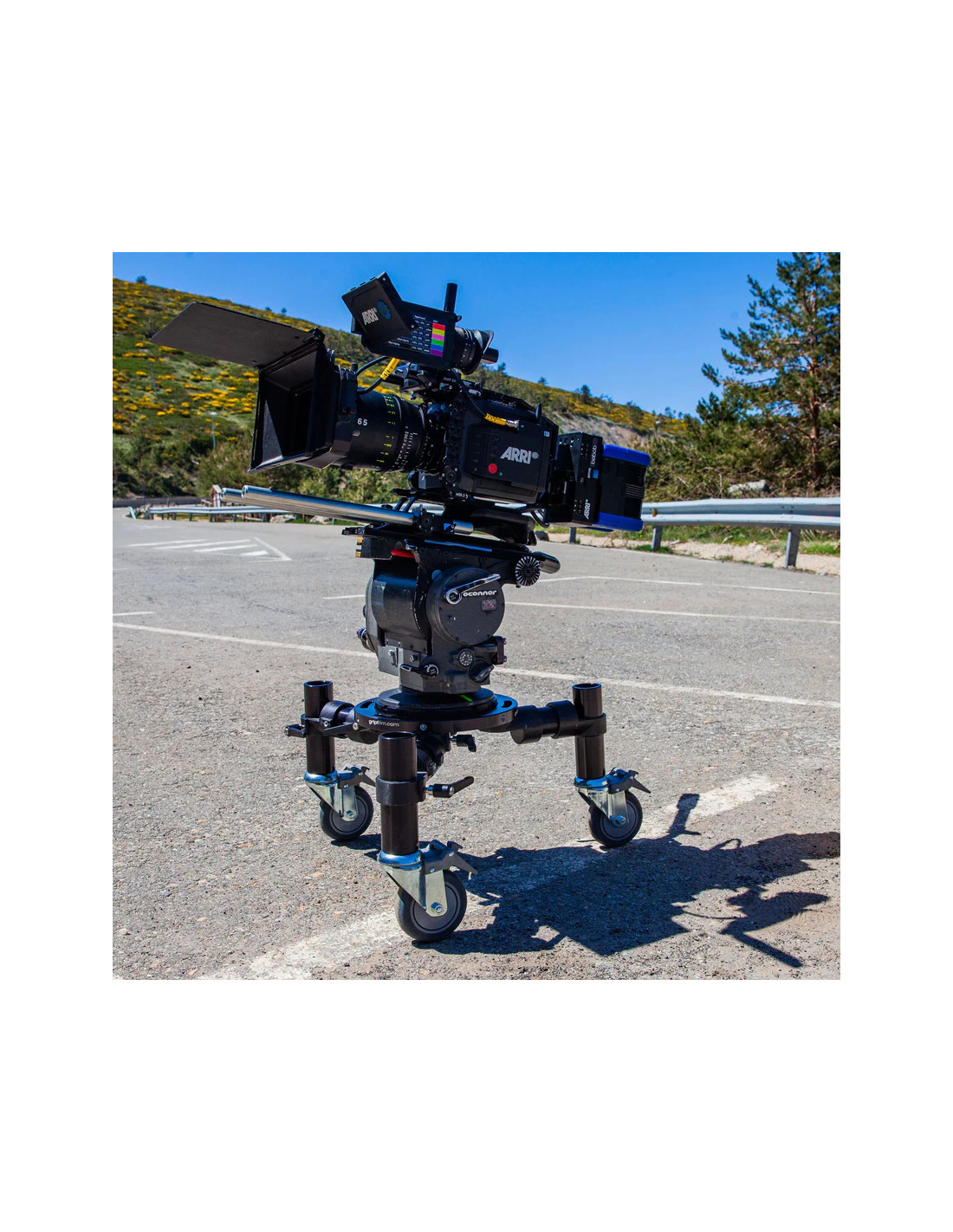

The 48.3 mm (1"1/2) Starter Pin & Wheel Set is a robust solution for turning grip bases, light stands, or custom rigs into mobile, high-capacity structures. Designed for standard 1"1/2 tubing, this set includes three aluminium starter pins, each 150 mm long, with M10 internal threads.

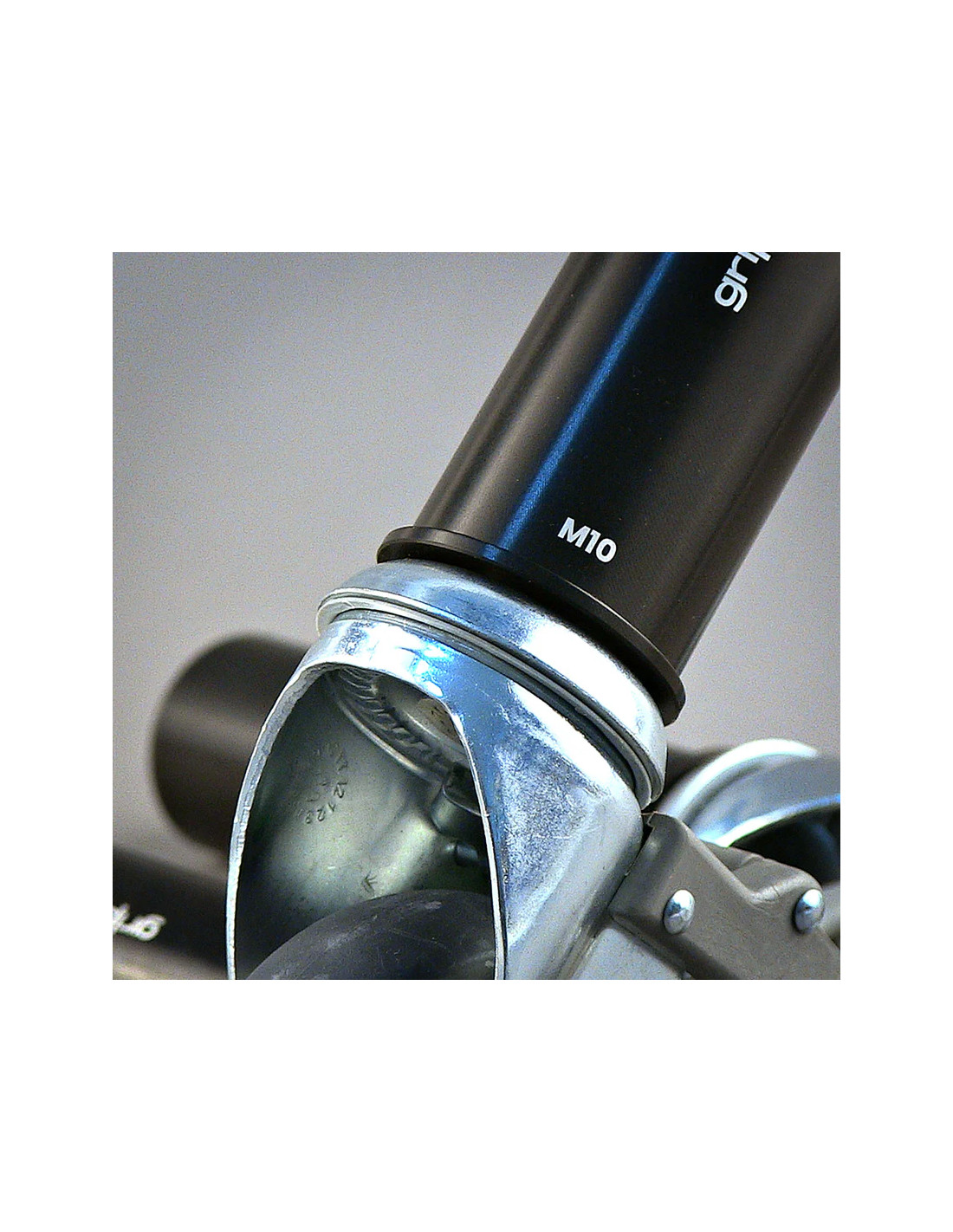

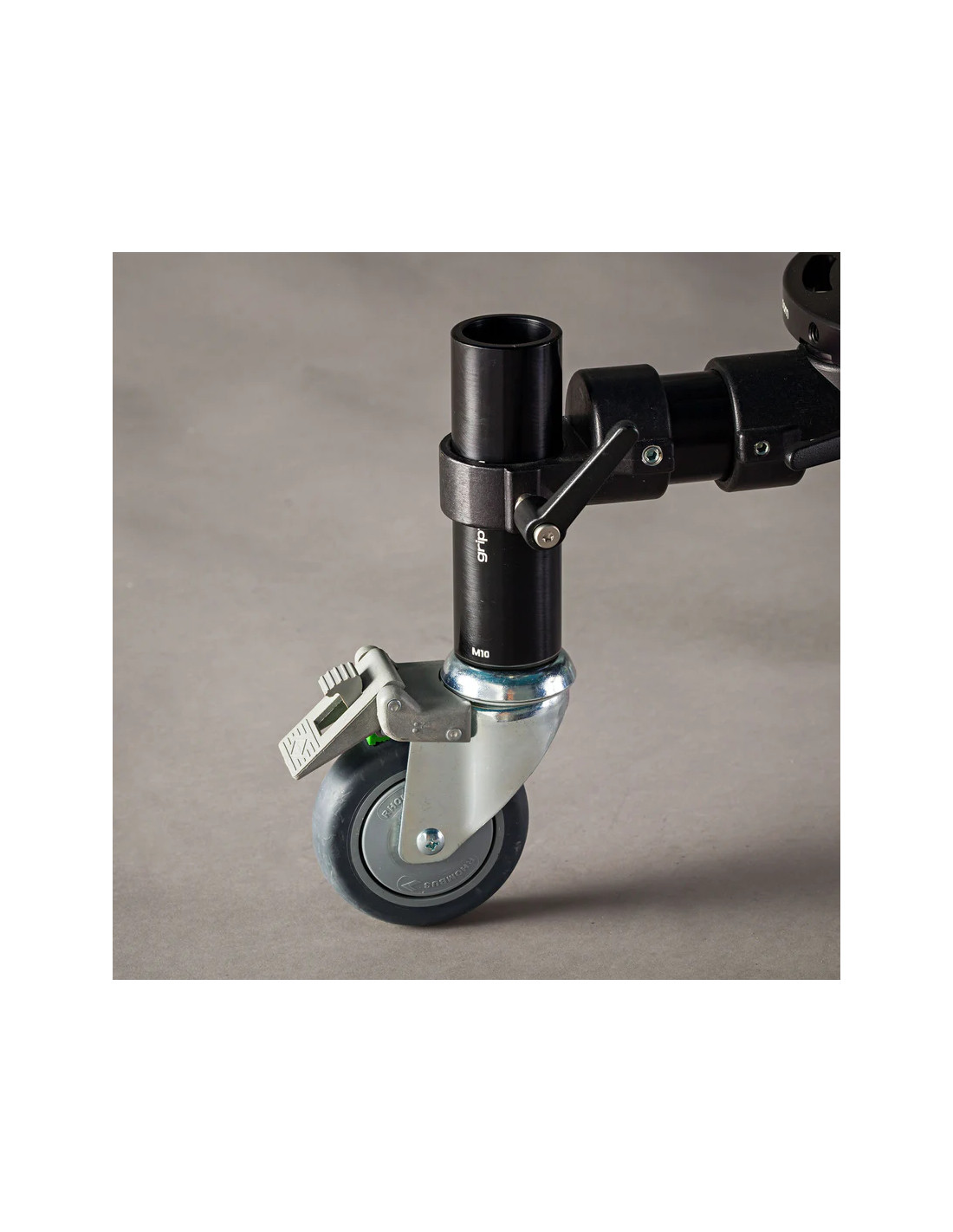

Each 100 mm swivel wheel is equipped with a dual ball race bearing system for smooth operation under load and includes a precision brake for added safety. With a load capacity of 100 kg per wheel, the set can handle professional-grade demands. The plastic dust seals and steel housing extend durability in studio and on-location conditions.

Fastening is achieved with DIN 7991 A-2 countersunk M10 screws, included in the set.

Key Features:

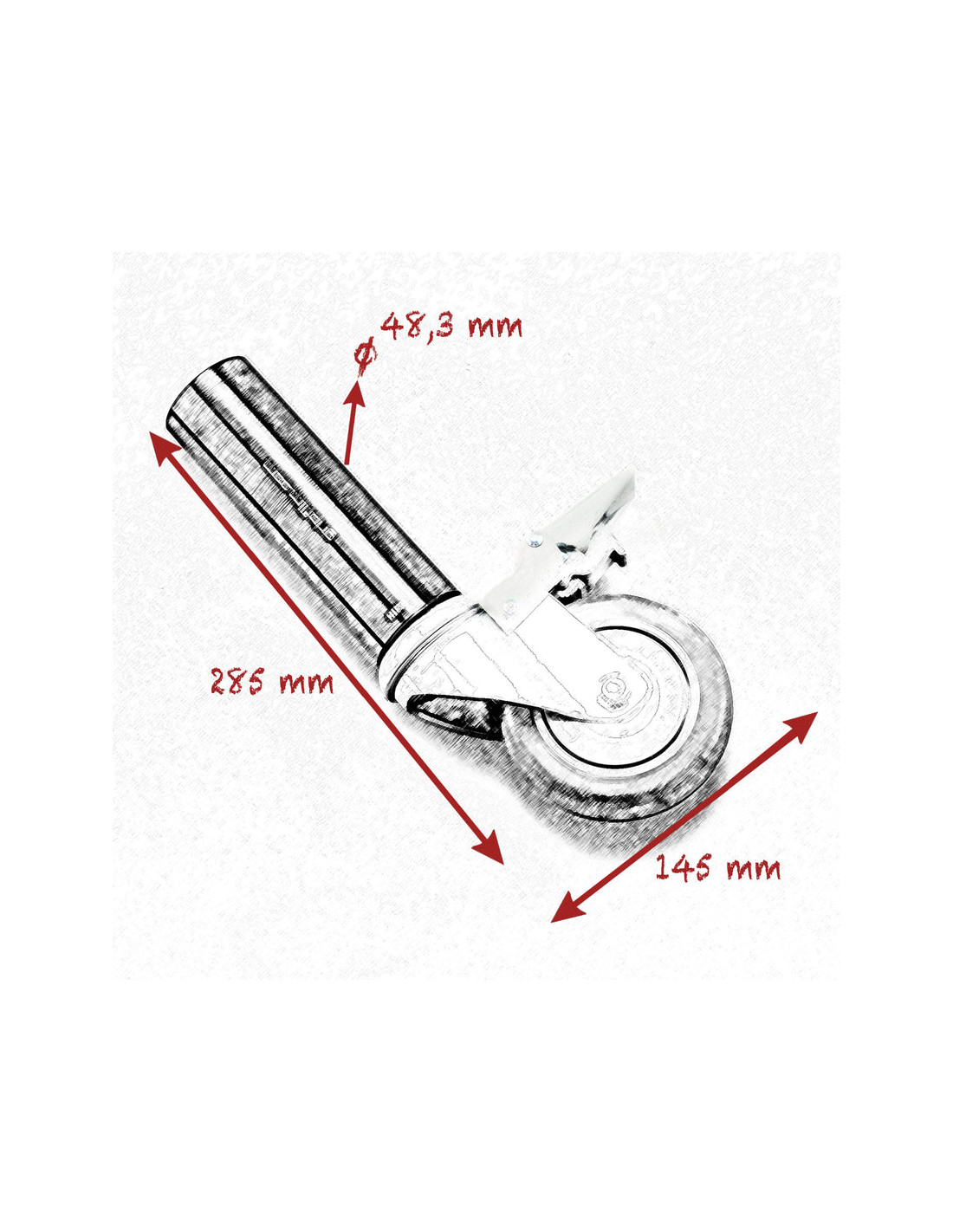

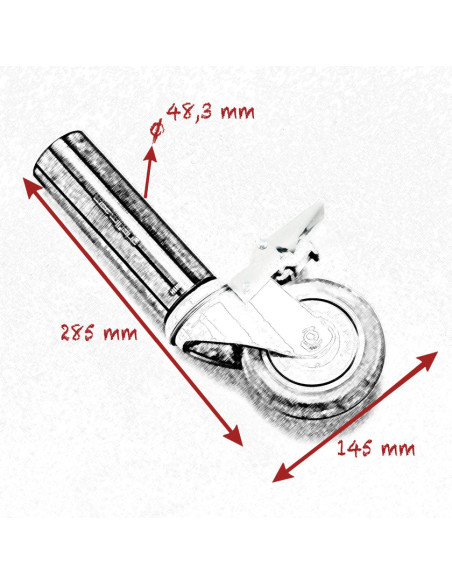

• Starter Pin Diameter: 48.3 mm (1"1/2)
• Length: 150 mm (5.91”)
• Thread: M10 female
• Pin Material: High-strength aluminium
• Wheel Diameter: 100 mm (4”)
• Load Capacity: 100 kg (220 lb) per wheel
• Swivel bearing with double ball race

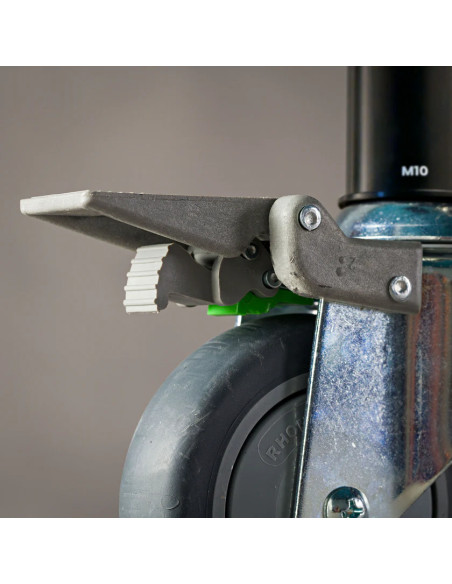

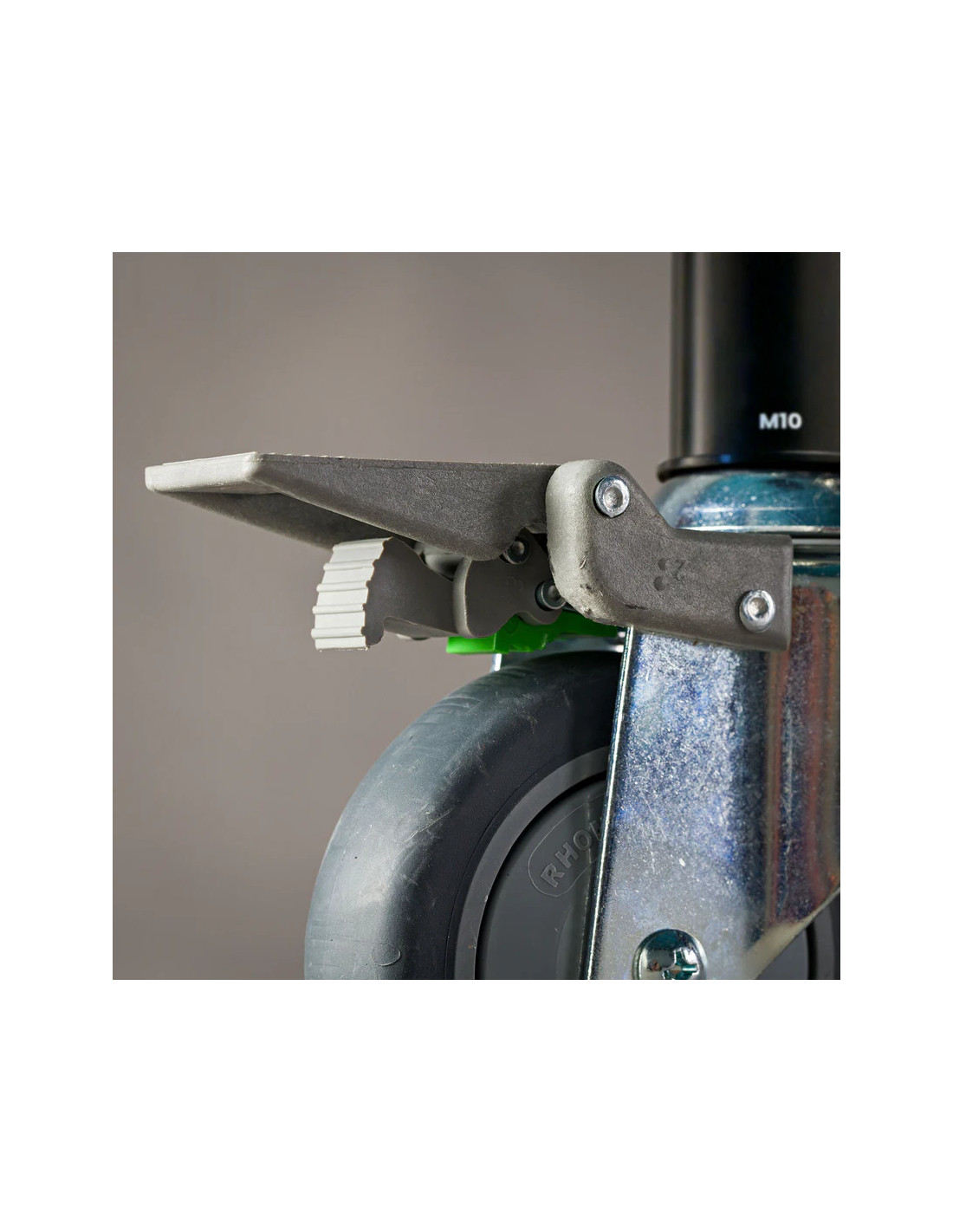

• Integrated precision brake
• Dust/water protection with plastic seal
• Steel housing / stainless + aluminium components

Set includes:

3 aluminium starter pins

3 swivel wheels with brake

3 M10x40 mm countersunk screws (DIN 7991 A-2)

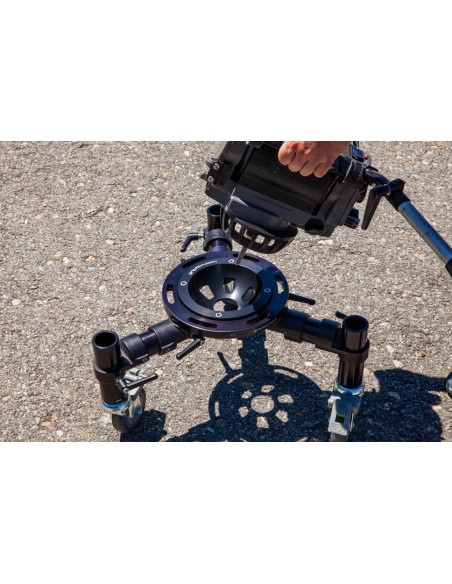

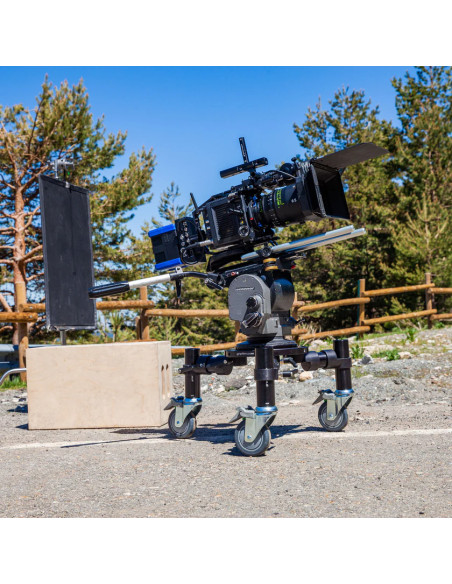

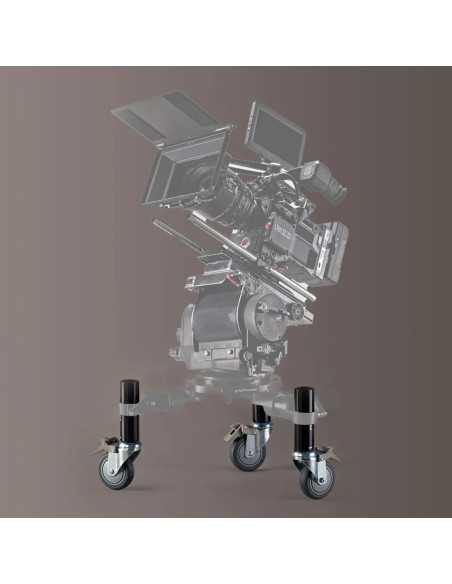

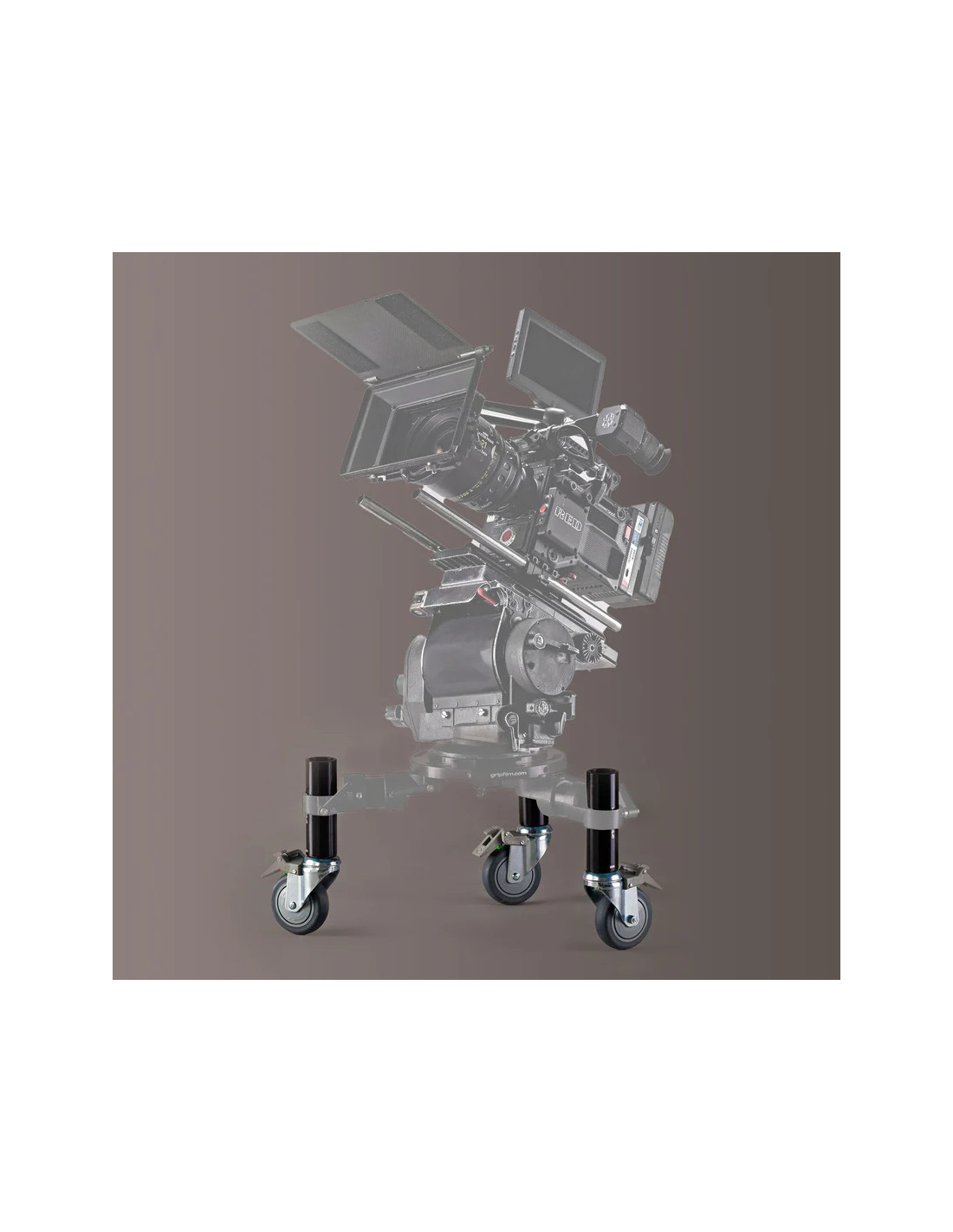

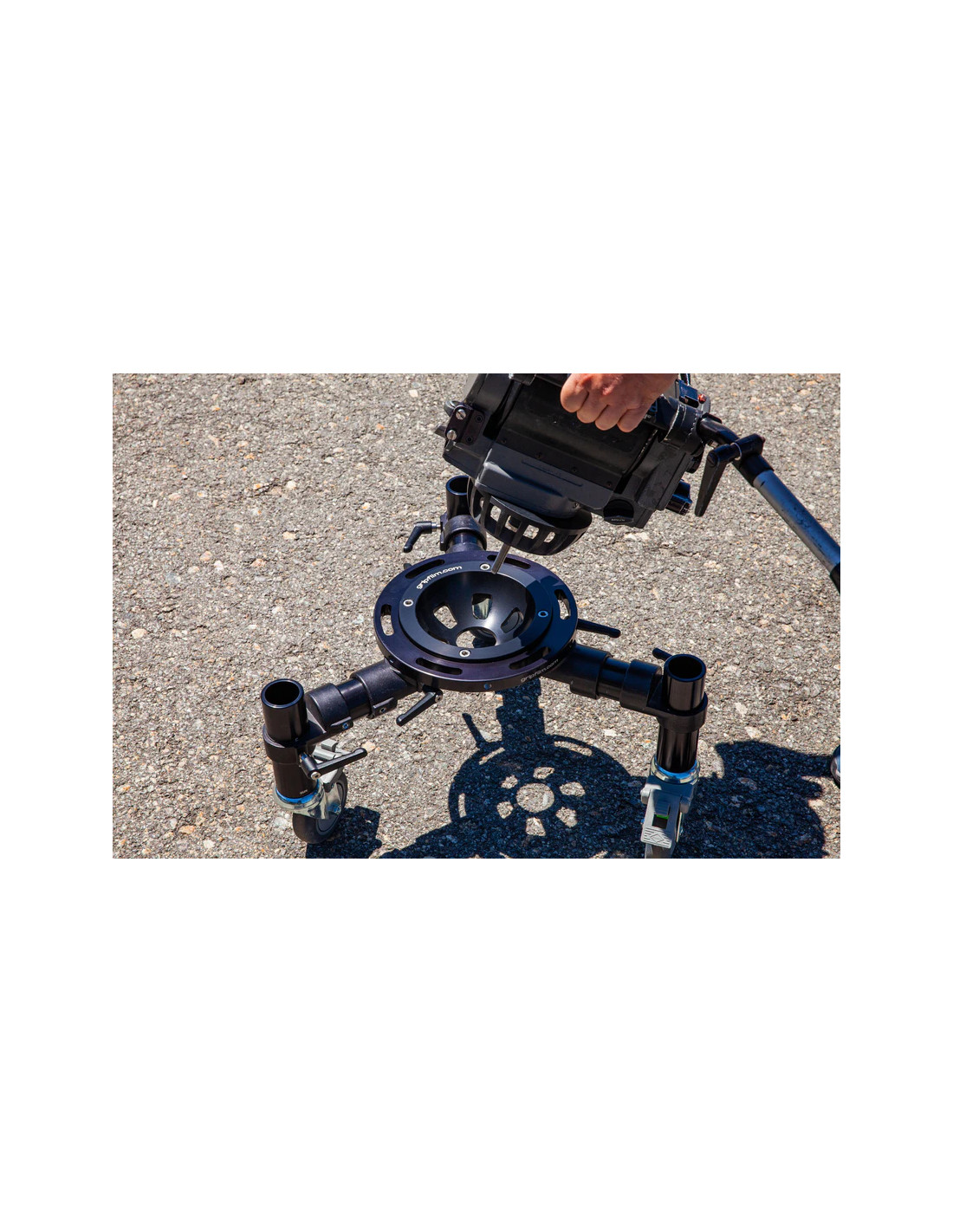

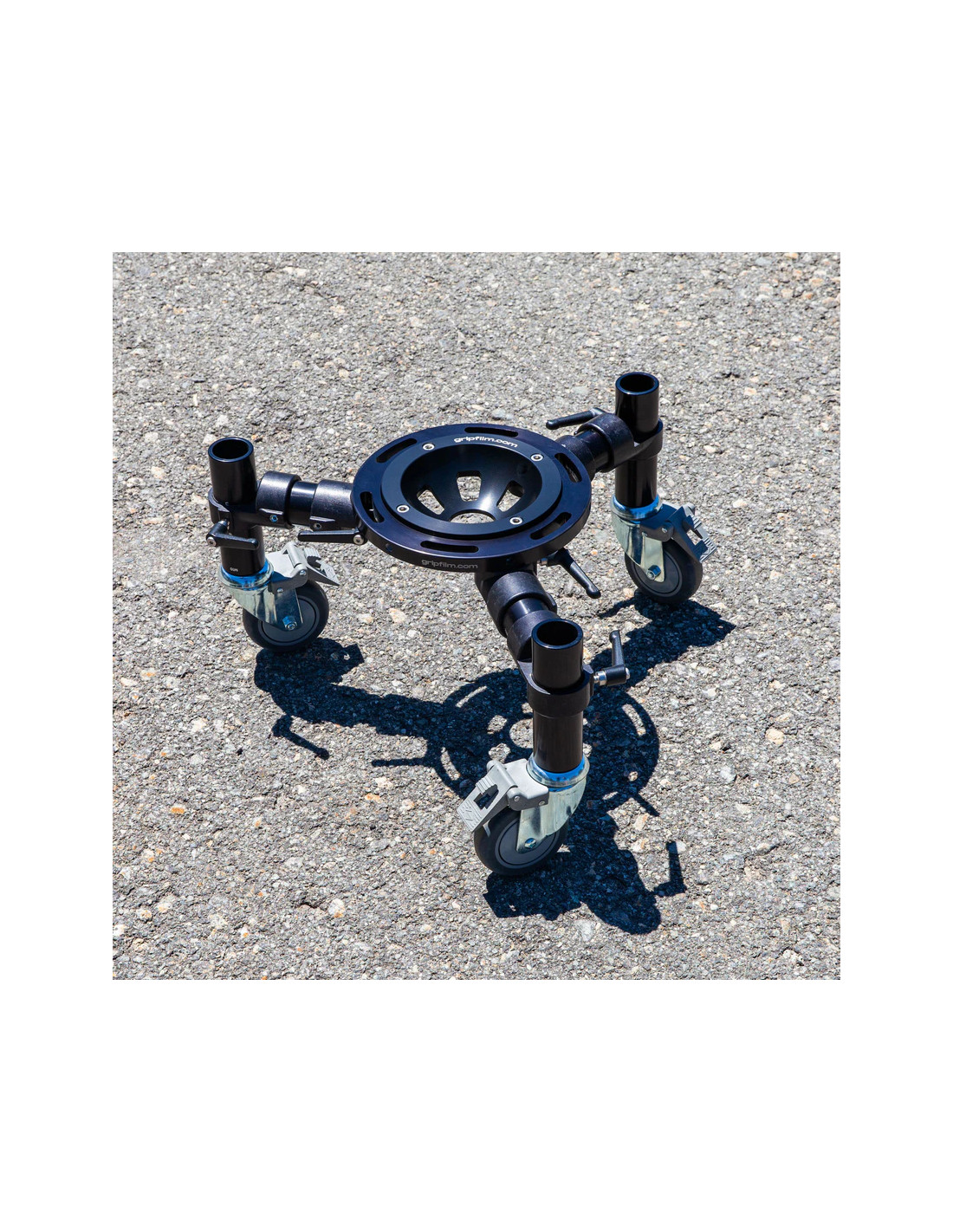

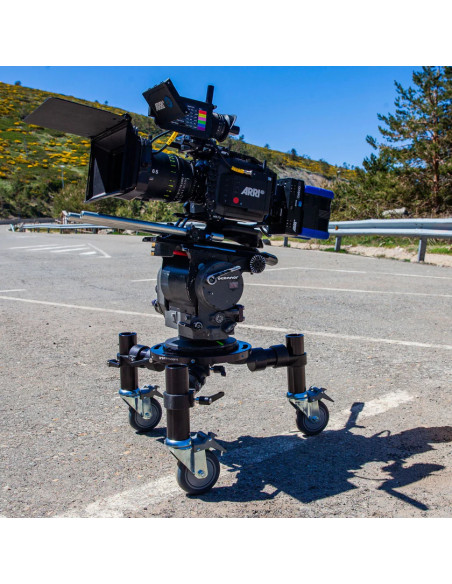

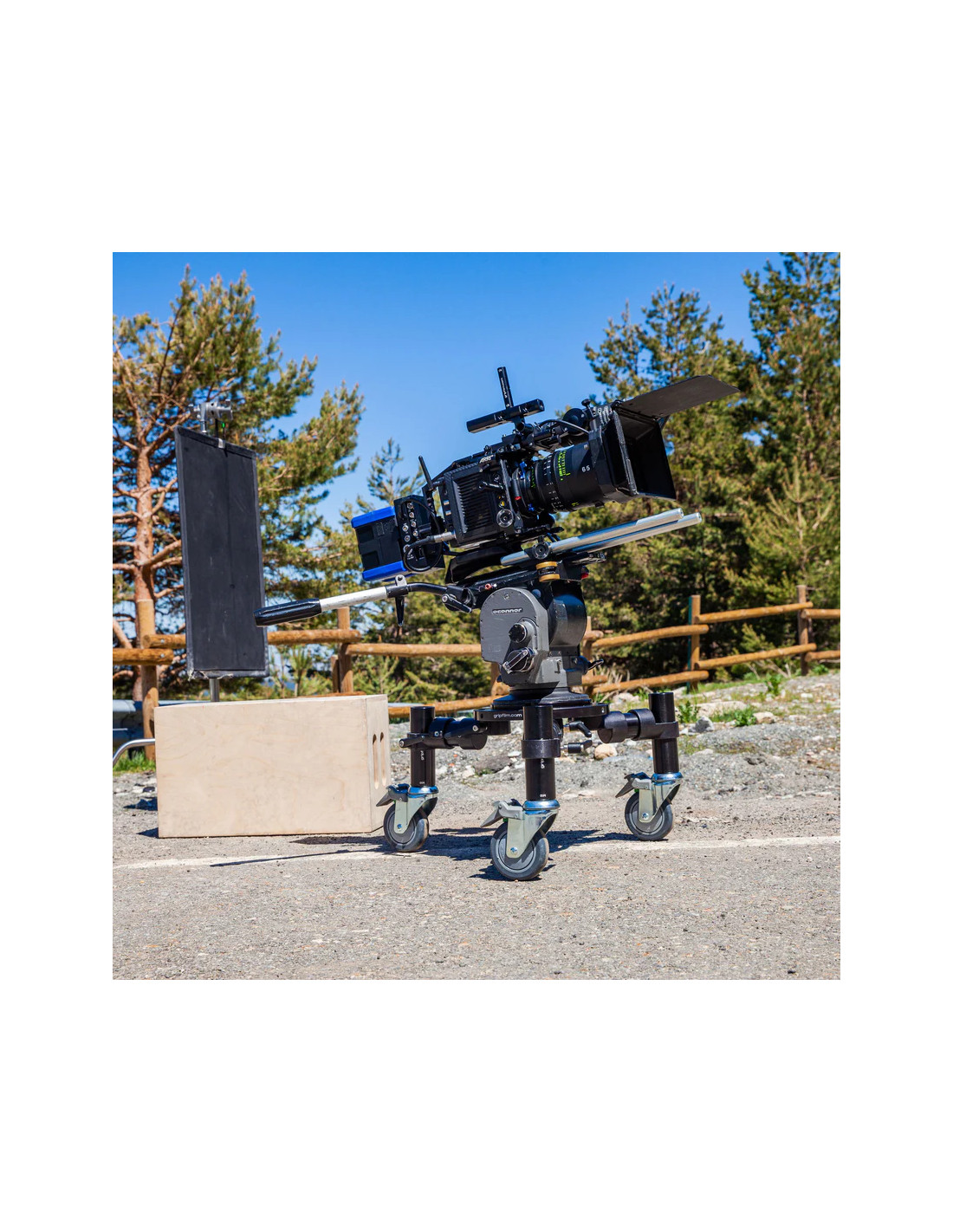

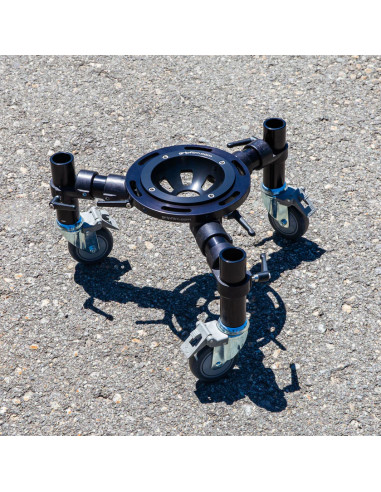

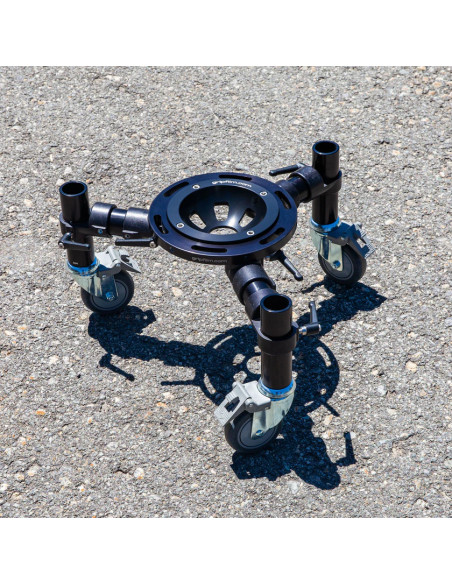

A mobile and heavy-duty rigging solution designed for film studios, lighting setups, and custom-built grip platforms.
